| Categories | Wire Mesh Fencing |
|---|---|
| Model Number: | Knuckle-knuckle/ knuckle-barbed/barbed-barbed |
| Certification: | ISO 9001:2015 |
| Place of Origin: | China |
| MOQ: | 100 pcs/50 rolls |
| Price: | negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 2500 rolls/pcs/day |
| Delivery Time: | within 10000 sets in a week |
| Packaging Details: | Wrap up the two edges of the crimped rolls with woven bags, then with pallets or bulk |

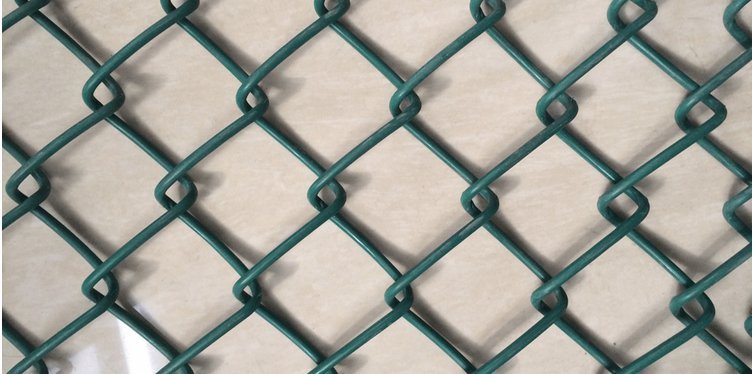

| Product name: | wire mesh fencing/ chain link fence |
| Material: | Galvanized iron wire/ low carbon iron wire/PVC coated iron witre |
| Surface treatment: | PVC coated, PVC sprayed, Galvanized(hot-dip+electrical) |
| Wire diameter: | 1-6mm |
| Mesh height: | 0.5-6m |
| Color: | Green, white, black, blue, etc |
| Sample: | Available and free of charge |
0.5-6m width PVC(green/balck) coated /Galvanized /Carbon steel Knuckle/barbed wire mesh fence/Chain link fence
| Chain Link Fence | |
| Material | Galvanized iron wire or PVC coated iron wire or Aluminum wire |
| Surface Treatment | PVC coated, PVC sprayed, electric galvanized, hot dipped galvanized |
| Wire Thickness | 1.0-6.0mm |
| Mesh Opening | 20x20mm, 40x40mm ,50x50mm,60x60mm,80x80mm,100x100mm etc |
| Mesh Height | 0.5m-6m |
| Mesh Length | 4m-50m |
| Technique of weaving type | knuckle-knuckle/ knuckle-barbed/barbed-barbed |
| Post & Rail Diameter | 32mm, 42mm,50mm,60mm,76mm,89mm etc |
| Post & Rail Thickness | 1.5mm,2.0mm,3.0mm,4.0mm,5.0mm etc |
| Dimension of Galvanized Chain Link Fence | |||
Mesh (mm) | Wire Diameter (mm) | Width (m) | Length (m) |
| 40 x 40 | 1.8 – 3.0 | 0.5 – 4.0 | 5 - 25 |
| 50 x 50 | 1.8 – 3.5 | 0.5 – 4.0 | 5 - 25 |
| 60 x 60 | 1.8 – 4.0 | 0.5 – 4.0 | 5 - 25 |
| 80 x 80 | 2.5 – 4.0 | 0.5 – 4.0 | 5 - 25 |
| 100 x 100 | 2.5 – 4.0 | 0.5 – 4.0 | 5 - 25 |
The Galvanized Chain Link Fence
1.Galvanized:hot dipped galvanized,electric galvanized
2.Type of galvanizing:Galvanized after welding,Galvanized before welding
Type Two: PVC coated chain link fence
Dimension of PVC coated Chain Link Fence | |||
Mesh (mm) | Wire Diameter (mm) | Width (m) | Length (m) |
40 x 40 | 2.8 – 3.8 | 0.5 – 4.0 | 5 - 25 |
50 x 50 | 3.0 – 5.0 | 0.5 – 4.0 | 5 - 25 |
60 x 60 | 3.0 – 5.0 | 0.5 – 4.0 | 5 - 25 |
80 x 80 | 3.0 – 5.0 | 0.5 – 4.0 | 5 - 25 |
100 x 100 | 3.0 – 5.0 | 0.5 – 4.0 | 5 - 25 |
Technique of woven type:
(1)Knuckle-Knukle:
The wire is knuckled at both ends and abbreviated as(KK)
(2)Knuckle-Barbed:
The wire is knuckled at the bottom and twisted into a barbed
selvedge at the top and is abbreviated as (KB)
(3)Barbed-Barbed:
The wire is twisted in to a barbed selvedge at both ends and is
abbreviated as(BB)
Kinds and application of chain link fence display
Application: Airport fence,prison fence,rail fence,highway fence,border fence,etc.
Feature: Best protection
Application: Yard fence,Garden fence, Park fence,Grass fence,Farm fence,etc.
Feature: Protection, Beautiful, low price, etc.
|
