3 Phase 200kw 400kw AC Frequency Inverter Reactor High Temperature Resistant

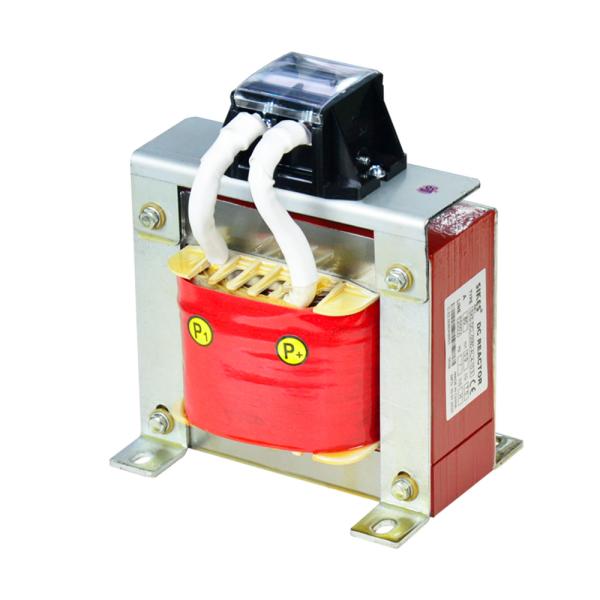

Three Phase 200kw 400kw DC Reactor For AC Frequency Inverter Variable Frequency Drive VFD

Reduce the current in DC circuit. Ensuring continuous current when inductance value reach to a certain degree. Reduce and prevent the rectifier bridge from damaging and capacitance overheating caused by pulse current. Improve power factor, reduce the AC pulse to the DC busbar, limit grid voltage transient.

Product Feature

The inside insulation material is of high performance & high temperature resistant combined with frame less process, the reactor's temperature heat-resisting ability is strong and the class F or class H is optional. Reactor air gap adopts argon arc welding process, which has low noise, small magnetic flux leakage and stable inductance. Coiled with foil winding process, reactor has strong resistance of electric magnetic force, good presentation quality. Core with grain- oriented cold-rolled silicon steel sheets, making reactors have high reliability, small size, light weight and low cost.

Product Parameters

Product Size

Shenzhen VEIKONG Electric CO.,Ltd. a high-tech enterprise which has been specializing in researching, manufacturing and trading high, medium and low voltage inverter, providing our clients with integrated system solutions. We have professional R&D and devoted management team with more than 20 years' experience of theoretical research, product development and quality management.Veikong also is one of the first independent AC drives company in China. We adopt SPWM, sensorless vector control and vector and torque control technology in our VFD series inverters, which has reached the international advanced standard. The products can directly replace and be equivalent of Europe and the United States, Japan and other brands, providing customers with a powerful technical support. We have achieved popularity and qualification in VFD industry. Quality is the life of enterprise.

Veikong drives keeps following ISO9001 standard to manage and supervise quality.Our products have passed CE certification and other technical approval. To better meet customer requirements and market needs, Veikong drives keeps on upgrading new technologies and new products.

The customer is the source of enterprise.We are honored to put top priority on customers' requirements as well as achieving their requirements.Our products have been widely used in petroleum, chemical, melting, hoisting, electric power, building materials, water supply, plastics, textiles, printing, packing and other industries to create value for customers.
