85.5kg 210A Portable Arc Welder Generator Petrol Medium Frequency RNW210G

Categories Arc Welding Generators
Brand Name: RAMS
Model Number: RNW210G
Place of Origin: CHINA
Certification: CE
MOQ: 100 units mixed model
Payment Terms: T/T, L/C
Delivery Time: 25 work days
Packaging Details: Carton/Pallet/Wooden case
DC Welding Current: 210A
Auxiliary Output: AC 3kw
DC Welding Voltage: 70-75V
Welding Current Range: 60-210A
Engine Model: 190FE Gasoline engine
Duty Cycle at rated amps avalible: 60% @210A
Start Method: Electric start
Fuel Tank Capacity: 12.5L
Receptacles: 1ps 16A
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

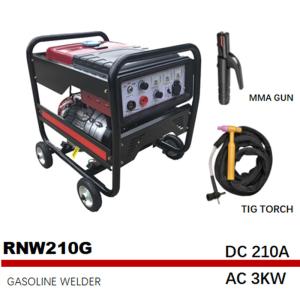

85.5kg 210A Portable Arc Welder Generator Petrol Medium Frequency RNW210G

210A Arc Medium Frequency Petrol Welding Generators

MOQ:12units mixed model


Coming in at only 85.5kgs , RAMS's 210-amp welder
is the number one choice for those hard to reach areas with
maintainance free Medium Frequency excitation generator NEW design.
This unit manitains the quality output contractors demand
and have to come to expect.
• 210 apms of DC welding power
AVR and brush Excitation
• High- frequency continuous weld 1.5-4.0mm Rod
• welding and generatoring can be used at the same time
• MMA and TIG two welding ways;High ends welder is the best choice
• for contruction places and oil pipe factory; repair shop
• Ideal for a wide variety of utility welding application

Unit Specification
DC Welding Current 210A
Non-loading Voltage(V) 70-75
Welding Current Range 60-210
Duty Cycle at rated amps avalible 60% @210A
Welding Process MMA /TIG
Welding Rod diameter 1.5-4.0mm
Fuel Tank Capacity12.5L
Fuel type gasoline
Generator Specification
Power rated output (single phrase) AC 3kw
Voltage 120V/220V/240V
Receptacles 1ps 16A
Dimensions&Weights
Carton size(mm)28.35*21.26*22.44in720*540*570mm
Net/Gross Weight(kg)183/188.5Ibs83/85.5kgs
Q'ty 20"/40"/40"H 128/256/256
Engine Specification
Engine Model 190FE Gasoline engine
Start Method Electric start
Borex stroke mm 90*66
Horsepower/displacement 420cc
Ignition System CDI

MOQ:12units mixed model
