Multi Color High Lumen 36v 30ma 180lm 3030 Led Chip Rgb For Sports Lamp

Application introduction:

From high schools and colleges to public and private athletic centers, proper gym lighting is a must. For too long, gyms and other sports centers have relied on old, outdated technology to illuminate their areas.

Similarly, because gymnasiums and indoor sports centers tend to have high ceilings, proper illumination can be challenging. You want the area to be bright enough to light up any activity, but you also don’t want to add unnecessary glare or add to a room’s ambient temperature.

LED lights offer consistent, natural lighting with high lumens that can reach every corner of a room with even, steady illumination. And because LEDs don’t give off much heat while operating, they don’t contribute to the gym’s overall temperature, thus bringing air conditioning costs down.

High lumen 36V 30MA 180lm 3030 PPT SMD LED CHIP USED FOR GYM LAMP AND SPORTS LAMP

Quick details:

Product specification:

Package Structure:

Absolute Maximum Ratings:

LED Reliability Test List:

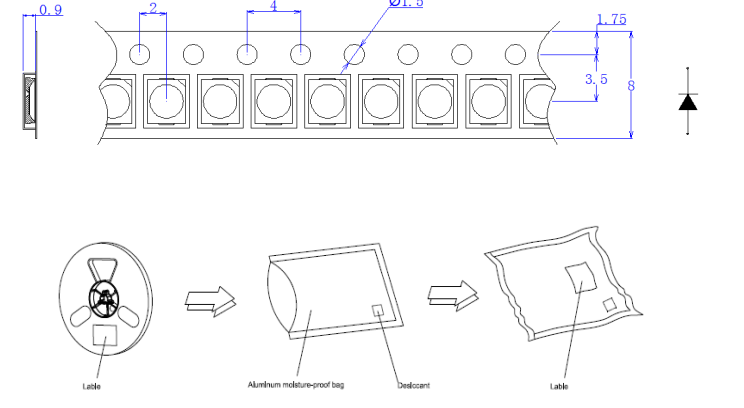

Packaging:

Cautions:
The encapsulated material of the LEDs is silicone. Therefore the LEDs have a soft surface on the
Top of package. The pressure to the top surface will be influence to the reliability of the LEDs. Precautions Should be taken to avoid the strong pressure on the encapsulated part. So when use the picking up nozzle,The pressure on the silicone resin should be proper.

Soldering iron :
When hand soldering, the temperature of the iron must less than 300℃ for 3 seconds
The hand solder should be done only one times

SMT Reflow Soldering Instructions SMT :
Reflow soldering should not be done more than two times
When soldering , do not put stress on the LEDs during heating
The recommended reflow soldering profile as following

Product process :

Phoenix (suzhou) Electronic Co., Ltd is a modern enterprise specializing in LED packaging production. Products are widely used in UV curing, sterilization, office lighting, commercial lighting, advertising lighting and other fields. The company was founded in 2008. After nearly ten years of precipitation and accumulation, our company is full of talents and vitality. There are more than 5000 square meters of workshops and supporting facilities, more than 60 new production lines, a large number of professional engineering and technical personnel, rich production experience and advanced production technology. They often analyze and customize products for customers, which can not only meet the special-shaped needs of customers, but also meet the needs of large-scale orders.
