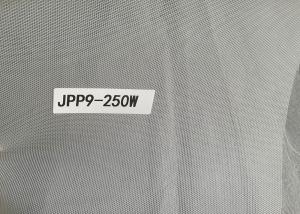

Food Grade 40 50 60 70 80 100 Micron Nylon Filter Mesh For Particle Filtration
Descriptions of the nylon filter mesh:
REKING All our raw materials are made of PA6.6, 100% monofilament nylon. If you want to filter food, we also have food grade material PA66. All these materials passed the inspection. We will provide you with the FDA test report, so you can use it with confidence. We have been producing nylon filters for 20 years and have a professional production department and after-sales department. You can buy our products with confidence. Our nylon mesh is woven from PA6 and PA66 monofilaments.
Applications of the nylon filter mesh:
1. Used for food filtration (for example: juice, milk and nut
filtration)
2. For analysis and testing of different particles
3. Used for solvent filtration
4. Background filter for automatic particle imaging system
5. For large particle filtration
6. For the filtration of paint
7. For the collection and filtration of cells and algae
8. For medical filtration (for example: blood filtration)
Advantages of the nylon filter mesh:
1.The mesh of the nylon filter is uniform, the weaving method is plain weave, and the mesh size is accurate and regular.
2.The nylon mesh material is 100% nylon monofilament with a smooth
surface. The filtered materials can easily leave the net without
sticking to the net, thereby greatly reducing the waste of
materials.
3.The nylon filter has great strength and elasticity.
4.All nylon filters have been cleaned and heat-set, and the nets
are clean, flat and not easily deformed.
5.Nylon monofilament has a longer service life than ordinary nylon
mesh.
6.The nylon filter has excellent solvent resistance.
7.The nylon filter is high temperature resistant and can work
continuously at high temperatures up to 100°C.
Specifications of the nylon filter mesh:
Fabric number | Mesh count | Thread diameter | Mesh opening | Thickness | Weight | |
No. | cm | inch | um | micron | um | g/m2 |
JPP4 | 4 | 10 | 550 | 1950 | 950 | 262 |
JPP5 | 5 | 12 | 500 | 1500 | 850 | 271 |
JPP6 | 6 | 16 | 400 | 1267 | 780 | 208 |
JPP10 | 10 | 25 | 300 | 700 | 576 | 195 |
JPP12 | 12 | 30 | 250 | 583 | 470 | 162 |
12 | 30 | 300 | 533 | 585 | 234 | |
JPP14 | 14 | 35 | 250 | 464 | 470 | 190 |
JPP16 | 16 | 40 | 200 | 425 | 370 | 139 |
16 | 40 | 250 | 375 | 485 | 217 | |
JPP20 | 20 | 50 | 150 | 350 | 375 | 98 |
20 | 50 | 200 | 300 | 385 | 173 | |
JPP24 | 24 | 60 | 150 | 267 | 285 | 117 |
JPP28 | 28 | 70 | 120 | 237 | 215 | 87 |
JPP30 | 30 | 76 | 120 | 213 | 225 | 94 |
JPP32 | 32 | 80 | 100 | 213 | 165 | 69 |
JPP36 | 36 | 90 | 100 | 178 | 178 | 78 |
JPP40 | 40 | 100 | 100 | 150 | 190 | 87 |
JPP43 | 43 | 110 | 80 | 152 | 135 | 60 |
JPP56 | 56 | 140 | 61 | 118 | 85 | 44 |
JPP59 | 59 | 150 | 61 | 109 | 98 | 46 |
JPP64 | 64 | 160 | 61 | 95 | 105 | 50 |
JPP80 | 80 | 200 | 50 | 75 | 90 | 43 |
JPP100 | 100 | 250 | 43 | 57 | 65 | 35 |
JPP120 | 120 | 305 | 43 | 40 | 70 | 42 |
JPP130 | 130 | 330 | 43 | 34 | 75 | 45 |
JPP140 | 140 | 355 | 38 | 33 | 67 | 48 |
JPP150 | 150 | 380 | 38 | 29 | 68 | 51 |
JPP165 | 165 | 420 | 35 | 26 | 62 | 47 |
![]() |
