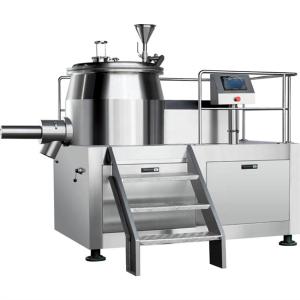

160 - 320kg/Batch Pharmaceutical High Speed Mixer Granulator Rmg Rapid Mixer Granulator

160 - 320kg/Batch Pharmaceutical High Speed Mixer Granulator Rmg Rapid Mixer Granulator

160 - 320kg/Batch Pharmaceutical High Speed Mixer Granulator Rmg Rapid Mixer Granulator
160 - 320kg/Batch Pharmaceutical High Speed Mixer Granulator Rmg Rapid Mixer Granulator
Categories High Speed Mixer Granulator
Brand Name: SNYNXN
Model Number: GHL 300
Certification: CE ISO GMP
Place of Origin: JIANGSU CHINA
MOQ: 1
Price: Negotiable
Payment Terms: T/T, L/C
Supply Ability: 100 SET/ YEAR
Delivery Time: WITHIN 50 DAYS
Packaging Details: Film Wrapping, Wooden Box
Type: Wet Type Mixing Granulator
Application Industry: Pharmacy and Chemical Granulating
Production Capacity: 160-320 kg/batch
Processing: mix, cut, granulation
Core Parts: PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear
Operation System: Touch Screen or Button Operation
Mixing paddle rotational speed: 5-150(rpm)
Dimension and Weight: according to solution
Batch Time: 15-30 Minute/Bacth
After-sales Service: Online support, Video provided Service
Contact Now
Company Info.
JIANGYIN SNYNXN GRANULATING DRYING EQUIPMENT CO.,LTD
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

160 - 320kg/Batch Pharmaceutical High Speed Mixer Granulator Rmg Rapid Mixer Granulator

Description:
GHL Pharmaceutical Pharmaceutical Mixing Granulating Machine
GMP China Manufacturer Pharmaceutical Mixing Granulating Machine Wet Rapid Mixer Granulator
Mixer and automatic weighing and oil mixing system manufactured by JNBAN are particularly suitable for efficient and uniform mixing of solid-liquid, solid-powder, powder-powder, and powder-liquid. Products are widely used in fine chemicals, feed,electronics, food, hard materials, ceramic materials, biology, medicine, non-metallic mining, building materials, coatings, dyes,fertilizers and metal powders for better mixing. Shear sensitive crystalline powder, batch product mixing, mixing liquid into solid.

Working principle:

The process consists of two programs includes mixing and granulating process.
Powder material can be charged into the material pan from the conical hopper and continue to rotate in the container under the action of mixing blade once the hoper is closed. In the meanwhile, all materials grow up the shape of liquid bridge under continuous effects of conical wall. Under the action of extrusion, friction as well as crumb by blade and conical tank wall, all material is gradually turn for loosen. At last while opening the hopper outlet, waterish particles are pushed off under the centrifugal effects blade.

Features:

1. Mix evenly: making sure the coloring particles or pigment are evenly distributed;

2. Strong blending ability: wetting the material quickly with 8-12% thickness starch slurry;

3. Judging the granulating situation by the max electricity consumption;

4. The production granules are relaxed and snow-like with no block, more particle and little powder;

5. The three procedures of the mixing, wetting and granulating run continuously in one barrel avoiding the pollution of the
manual contact;

6. It can produce repeated with the right parameters, such as the time and speed of the mixing and granulating, the consumption of the adhesive, the consumption of the electricity, etc.;

7. The producing time is approx. ten minutes with high efficiency and the production particles can be well compressed;

8. The great applicability: it can be used for pipelining with one-step fluidized granulator, as well as the fluidized drier;

9. Saving the adhesive about 20-25% and shorten the drying time;

10. Features: advanced design, reasonable layout, reliable seal, convenient operation, security, reliable, etc
Product Paramenters:
Series technical parametes
GHL-100
GHL-300
GHL-500
GHL-800
GHL-1000
GHL-1200
Volume(L)
100
300
500
800
1000
1200
Mixing power (KW)
7.5
22
37
55
55
75
Mixing RPM
5-287
5-200
3-169
3-148
3-140
3-133
Chopper power (KW)
3
5.5
7.5
11
15
15
Heating area (m²)
3.0
4.7
6.0
7.5
9.5
12
Chopper RPM
1000-2800
1000-2500
1000-2800
1000-2000
1000-1500
1000-1500
Wet mill power (KW)
1.1
3
4
5.5
5.5
5.5
Mill power (KW)
300-1400
300-710
300-710
300-960
300-960
300-960
Machine dimension (M)
2.7*3.1*2.2
3.3*4.1*2.4
3.4*4.4*2.9
3.5*5.5*3.3
3.4*5.5*3.3
3.4*5.6*3.7
Weight
1100
2500
3000
5700
6000
6700


CERTIFICAITONS:



EXHIBITIONS:

OUR FACTORY:

Our Services

1.Your enquiry or questions will reponse once we receive it!
2.Providing technical data,high-definition pictures,flow chart etc.
3.Supply the validation documents and certificates.
4.OEM/ODM is available.
5.Long-term after-sale service,door-to-door service and corporate training

FAQ

Q: Where is Your Factory? How Can I Visit Your Factory?
A:Our Factory is Located in Jiangyin City, Jiangsu Province. We Warmly Welcom You to Visit Our Factory if You Have a Travel Plan


Q: How can I know your machine is designed for my product?
A: If you don't mind, you can send u sample and we test it on the machine. During that time, we will take video and clearer
picture for you. If chance, we can take video online and show u.

Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.

Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check company from MadeinChina and Alibaba, and the quality, delivery time, your payment are all ensured by both company's trade assurance.
The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L
