| Categories | Stereo Zoom Microscope |
|---|---|
| Brand Name: | iqualitrol |
| Model Number: | MZDR-0850 |
| MOQ: | 1 Set |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50 Sets per Month |
| Delivery Time: | 3 Working Days |
| Packaging Details: | Carton Box |
| Model: | MZDR-0850 |
| Zoom range: | 0.28X～1.875X |
| Work distance: | 26mm/45°；42mm/60° |
| Application: | SMT, PCB, BGA surface board assembly industries |
| Feature: | observe the positions which tradition lens unable to display |
| Motor: | 5 ~ 27 turns/minute, stepless adjustment |

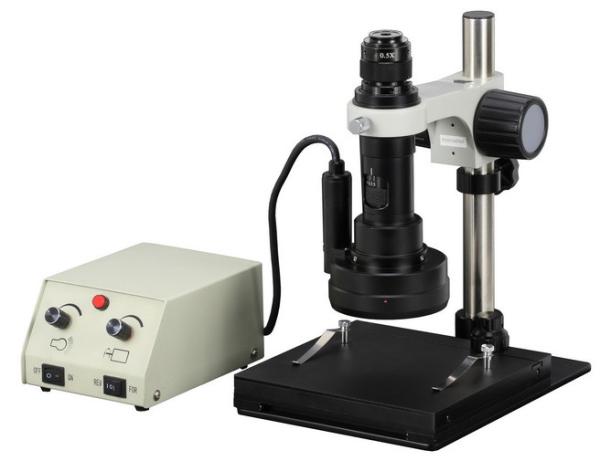

Three Dimensional Rotated multi-angle observation Zoom Stereo Microscope
Features:
iqualitrol MZDR-0850 apply advanced optical technology and precision machinery & electronics technology.
Three-dimensional whole azimuth multi-angle observation, level of detail of the observed greatly improved.
No tilt, able to 360° observe to get high-resolution, large depth of field real-time dynamic image of each side of the observed sample.
Available to observe the positions which tradition lens unable to display, such as the bottom of the PCB board, inside & side-wall of metal holes and etc.
Mainly application range of iqualitrol MZDR-0850 is on SMT, PCB, BGA surface board assembly industries extensively.
Technical Specifications:
| Zoom range | 0.28X～1.875X |
| Standard WD | 26mm/45°；42mm/60° |
| Illuminators | Long life LED illumination |
| Miniature motor | 90V~260V wide input voltage. 5 ~ 27 turns/minute, stepless adjustment. |
| Holder and main body matching dimension | Φ45mm |
| Zoom body model | MZDR0850/45° | MZDR0850/60° |
| CCD adapter | 0.5X | |
| Optical Mag. | 0.28X～1.875X | |
| FOV(1/3"CCD )(mm) | 12.9X17.1～1.92X2.56 | |
| Observation angle | 45° | 60° |
| WD(mm) | 26 | 42 |
|
