Automatic Dimension Measuring Instruments High Precision

Dimensional Measurement Instrument

Vacuum cup manufacturing field-Machine vision.pdf

Product description

It is suitable fbr the high-precision measurement of external dimensions of the cup mouth, cup body and cup bottom in the thermos production line;

The system is equipped with high-precision optical devices to realize the precise measurement of profile of metal surfaces;

Based on the independent Smart Vision technology, it provides users with friendly human-computer interaction software;

It enables the automatic loading and unloading with the mechanical arm, 360° automatic measurement of the cup body by one click, and switching and calibration of product changeover template by one click.

Product features

High-precision non-contact measurement (accuracy of 0.01mm);

360° rotation automatic detection (<5 seconds/piece);

Large field of view imaging to enable full-scale detection of points, lines, circles, arcs and angles of measurement objects such as cup mouth, cup body and cup shoulder;

Cross-camera measurement can not only realize the full inspection with large field of view, but also optimize the equipment hardware;

Loading and unloading by manipulator to realize automatic detection;

Friendly, easy-to-operate human-computer interface;

One-click changeover;

Templates can be customized according to the measurement scenes.

Dimensional measurement workstation

The workstation is designed fbr automatic loading and unloading with a six-axis robot. Materials can be placed on the conveyor line manually, or the conveyor line is directly linked to the upper and lower processes without involvement of manpower. The equipment in the scheme is outfitted with 1 set of robot, 2 sets of dimension measuring instruments, and 1 set of manipulator as standard: 1 set of loading line, 1 set of unloading line, and 1 set of substandard product bakflow line are optional.

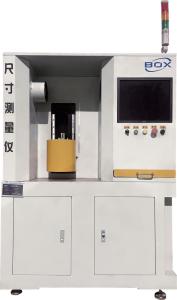

Thermos cup size measuring instrument

The machine is equipped with a high-precision optical device, which can measure the external dimensions of the cup mouth, cup body, and cup bottom with high precision, and the profile of metal arc surfaces with precision.

Loading/unloading six-axis robot

The double-claw six-axis robot can meet the requirements of large-angle rotation and long-distance loading and unloading. The double-claw design facilitates loading and unloading to improve the tempo of the production line.

Loading/unloading/NG product conveyor belt

Three combined conveyor belts, fbr PASS/NG products, are used to prevent mixed feeding.
