| Brand Name: | Aoxing |
| Model Number: | AW, BW, NW, HW, HWT, PW |
| Certification: | ISO9001 |
| Place of Origin: | Hebei,China |
| MOQ: | 1 Piece |
| Packaging Details: | in Plywood Case |
| Model NO.: | AW, BW, NW, HW, HWT, PW |
| Type: | Core Drill Bit |
| Material: | Diamond |
| Usage: | Geotechnical/Mining Exploration |
| Matrix Height: | 6mm-12mm |
| Kind: | Diamond Drill |
| Application: | Mineral Exploration |
| Rock Type: | Clay,Hard Sandstone,Syenite,Quartzite,etc |
| Hardness: | F1-F12 |
| Market: | Goloble |
| Company Info. |
| Hengshui Aoxing Geological Equipment Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

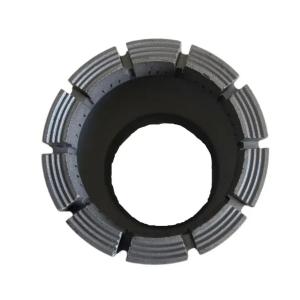

Casing Shoe:
The casing shoe bit is mainly used in handling casing tube in the
shallow earth surfaces, and we have casing shoes bit in different
hardness to better fit various casing tube bits
The casing shoe diamond bit is mainly made up of diamond single
crystal steel body, tungsten carbide and polycrystalline diamond
Main functions of casing shoe:
1): Protect casing ends from distortion.
2): Help casing pass through stratum to bed rock.
3): Carry mud to earth surface.
4): Help down-pass of casing when drill rod is in hole.
Reamer Size Available:
Wireline Series: B, N, H, P
W Series: RW, EW, AW, BW, NW, HW, PW, SW, UW, ZW, HWT, PWT, BWS, NWS
Metric Series: 46, 56, 66, 76, 86, 101, 116, 131, 146
X Series: RX, EX, AX, BX, NX, HX, PX, SX, UX, ZX
If you need any further information, please feel free to contact
with us, we will be quite pleased to show all the details you asked
for.
The Dimensions of the Casing Shoe Bits:
| Size | Outside Diameter | Inside Diameter |
| mm | mm | |
| RW | 37.6 | 30.2 |
| EW | 47.5 | 38 |
| AW | 59.5 | 48.3 |
| BW | 75.2 | 60.2 |
| NW | 91.8 | 76 |
| HW | 117.4 | 99.7 |
| PW | 143.4 | 123.4 |
| SW | 172.4 | 146.8 |
| UW | 198 | 175.4 |
| ZW | 223.6 | 200.7 |
| RX | 37.6 | 30.2 |
| EX | 47.5 | 38 |
| AX | 59.5 | 48.3 |
| BX | 75.2 | 60.2 |
| NX | 91.8 | 76 |
| HX | 117.4 | 99.7 |
| PX | 143.4 | 123.4 |
| SX | 172.4 | 146.8 |
| UX | 198 | 175.4 |
| ZX | 223.6 | 200.7 |
| 46 | 46 | 37 |
| 56 | 56 | 47 |
| 66 | 66 | 57 |
| 76 | 76 | 67 |
| 86 | 86 | 77 |
| 101 | 101 | 88 |
| 116 | 116 | 103 |
| 131 | 131 | 118 |
| 146 | 146 | 133 |
|
