Corrugated DWC CPVC Pipe Manufacturing Machine Bellows Drainage Drip Pipe

Corrugated DWC CPVC Pipe Manufacturing Machine Bellows Drainage Drip Pipe

Corrugated DWC CPVC Pipe Manufacturing Machine Bellows Drainage Drip Pipe
Corrugated DWC CPVC Pipe Manufacturing Machine Bellows Drainage Drip Pipe
Categories Corrugated Pipe Extrusion Line
Brand Name: Sincere
Model Number: SMDW110,SMDW160,SMDW300,SMDW600
Place of Origin: China
MOQ: 1
Price: Negotiable
Payment Terms: L/C,T/T
Supply Ability: 20 sets per month
Delivery Time: 7-15 work days
Condition: New
Application: Draiage Pipe
Plastic processed: PE
Screw design: Single-screw,Double-screw,single/double screw extruder
Automatic grade: Automatic,Full-automatic,100%
After-sales service provided: Engineers available to service machinery overseas,Field installation,commissioning and training,Free spare parts,Online support
Voltage: 380V 50HZ 3Phase(Customized),380V,Customized,50hz,380 or customized
Power(w): 50kw,37kw,18.5kw,1.5-200KW,`
Weight: 10T,2T,2-10T,8-20T,1T
Dimension(l*w*h): CAPACITY,20mx2.5mx2.2m,20*2*3.5m,12m*1m*2m,60m*3m*4m
Warranty: 1 Year,12 Months
Color: White / Blue or according to request,Grey or Customized,as clients' requirements,Customized,Jiangsu XinRong standard color(white)
Raw material: PVC Powder,pvc pe pp eva,Hdpe/PP Pellets,PE,PP PE PVC PA Granules
Inverter: ABB Brand,ABB Frequency Controller
Pipe diameter: 40-110mm,800~1200mm,300-800mm
Name: HDPE hollow wall winding pipe extrusion line,plastic corrugated pipe extrusion machine,Corrugated pipes machine,Single screw double wall corrugated plastic hdpe pipe extrusion line
Processing type: Extruding Machine,Pipe Extrusion
Contactor: Siemens Contactor,Schnerder
Contact Now
Company Info.
Qingdao Sincere Machinery Co., Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Corrugated DWC CPVC Pipe Manufacturing Machine Bellows Drainage Drip Pipe

Product Description

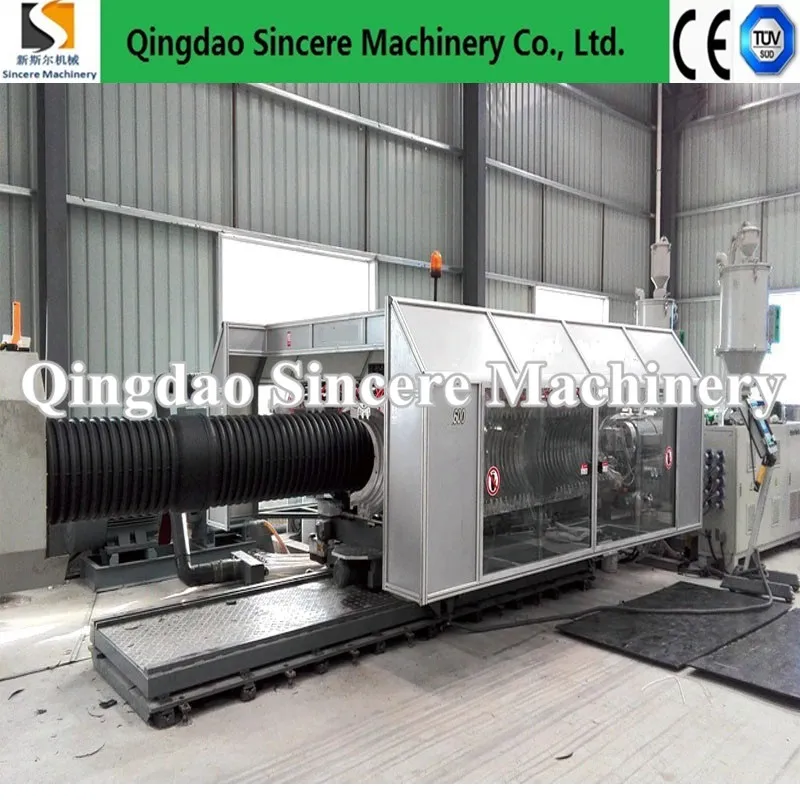

High-Speed PE PP double wall corrugated pipe making machine/extrusion line(90-1200mm).
New Type PE PP double wall corrugated pipe making machine/extrusion line(90-1200mm).

Diameters: 90-300mm,110-600mm,200-800mm,300-1000mm,600-1200mm

1. HDPE double-walled corrugated pipe application:
HDPE / PP double wall corrugated pipe is widely used as drain pipe. The company absorbs foreign advanced technology, independent research and development of the HDPE double wall corrugated pipe production line, with a number of patented technologies. Our new high-speed PE | PP double-wall corrugated pipe production line, the use of new high-performance single-screw extruder, forming machine using horizontal structure, shuttle drive, sealed water-cooled, online flaring, high degree of automation, stable operation, large output.


2. PE / PP double wall corrugated pipe production line, can be used to produce ID90-ID1200 specifications of the single-walled, double-wall corrugated pipe (with Pipe Belling), three-wall corrugated pipe, different shapes and special requirements of special-shaped bellows.

3. Main technical parameters:

Line ModelSMSG-300SMSG-600SMSG-800SMSG-1000SMSG-1200
the diameter range
(DN|ID)(mm)		90mm-300mm110mm-600mm200mm-800mmmm300mm-1000mm600mm-1200mm
Mold number (pair)3636363939
Max. Operating speed
(mmin)		186.55.53.51.8
Total power(kw)2503956509801350
Max. output(kgh)6001350160019002100
Dimension (mm)
Length*Width*Height		27*3.5*2.8m27*5.5*3.8m29*6.8*4.0m32*7.6*4.2m35*8.5*4.5m

Single screw extruders with big LD, and Long die-head mould and calibrator.
Large Diameter Double Wall Corrugated Dwc Pipe Making Machine HDPE Dual Wall Bellows Drainage Pipe Extrusion Machine

Single Screw Extruder

High production capacity of extrusion on the high quality basis. Lower temperature plasticizing design, ensure high quality PIPE extrusion.
Material of screw and barrel: 38CrMoAlA, nitrogen quenched (0.4-0.7mm ), Rigidity of screw: >740 , Rigidity of barel>940, the surface of screw is chromeplated Feeding bush with water cooling system

Extrusion Die

Material :40Cr , the surface of die is chromeplated, anti-corrosive
Two layer with aluminum cooling sleeve
Large Diameter Double Wall Corrugated Dwc Pipe Making Machine HDPE Dual Wall Bellows Drainage Pipe Extrusion Machine
Large Diameter Double Wall Corrugated Dwc Pipe Making Machine HDPE Dual Wall Bellows Drainage Pipe Extrusion Machine

High Speed Forming Machine

Gear driven system with high precision modules and tracks. The track is water cooling system, it could meets 4-6m/min working speed.It is added water cooling and fan cooling two system.

Moulds Block

Materials of moulds block:40CrThe moulds are made by CNC system, it is high precison and long service life.
We could add the vacuum system for option
Spray Water Cooling Tank
It's for produce large diameter pipe,if yor only need produce 40-110mm,it's will no need.
Large Diameter Double Wall Corrugated Dwc Pipe Making Machine HDPE Dual Wall Bellows Drainage Pipe Extrusion Machine
Large Diameter Double Wall Corrugated Dwc Pipe Making Machine HDPE Dual Wall Bellows Drainage Pipe Extrusion Machine
Stacker
It's used for large diameter pipe,like 160mm-120mm.
40-110mm use the pipe winding machine.

Large Diameter Double Wall Corrugated Dwc Pipe Making Machine HDPE Dual Wall Bellows Drainage Pipe Extrusion Machine
Large Diameter Double Wall Corrugated Dwc Pipe Making Machine HDPE Dual Wall Bellows Drainage Pipe Extrusion Machine

High-speed corrugator machine, using high-qulity Aluminum module.

Large Diameter Double Wall Corrugated Dwc Pipe Making Machine HDPE Dual Wall Bellows Drainage Pipe Extrusion Machine
Large Diameter Double Wall Corrugated Dwc Pipe Making Machine HDPE Dual Wall Bellows Drainage Pipe Extrusion Machine
Large Diameter Double Wall Corrugated Dwc Pipe Making Machine HDPE Dual Wall Bellows Drainage Pipe Extrusion Machine

Water cooling tank, Automatic cutting machine, stacker.

Large Diameter Double Wall Corrugated Dwc Pipe Making Machine HDPE Dual Wall Bellows Drainage Pipe Extrusion Machine
Large Diameter Double Wall Corrugated Dwc Pipe Making Machine HDPE Dual Wall Bellows Drainage Pipe Extrusion Machine
Large Diameter Double Wall Corrugated Dwc Pipe Making Machine HDPE Dual Wall Bellows Drainage Pipe Extrusion Machine


Final Products Show & Application:

Large Diameter Double Wall Corrugated Dwc Pipe Making Machine HDPE Dual Wall Bellows Drainage Pipe Extrusion Machine
Large Diameter Double Wall Corrugated Dwc Pipe Making Machine HDPE Dual Wall Bellows Drainage Pipe Extrusion Machine

Large Diameter Double Wall Corrugated Dwc Pipe Making Machine HDPE Dual Wall Bellows Drainage Pipe Extrusion Machine
Large Diameter Double Wall Corrugated Dwc Pipe Making Machine HDPE Dual Wall Bellows Drainage Pipe Extrusion Machine

Our Service:
Large Diameter Double Wall Corrugated Dwc Pipe Making Machine HDPE Dual Wall Bellows Drainage Pipe Extrusion Machine
*We can provide customers with perfect installation and use services.
*We can provide customers with satisfactory products according to their needs.
*When problems arise during the use of products, we can provide appropriate solutions.
*The warranty period is one year, except man-damage.
*Welcome to visit our factory and looking forward to win-win cooperation.
